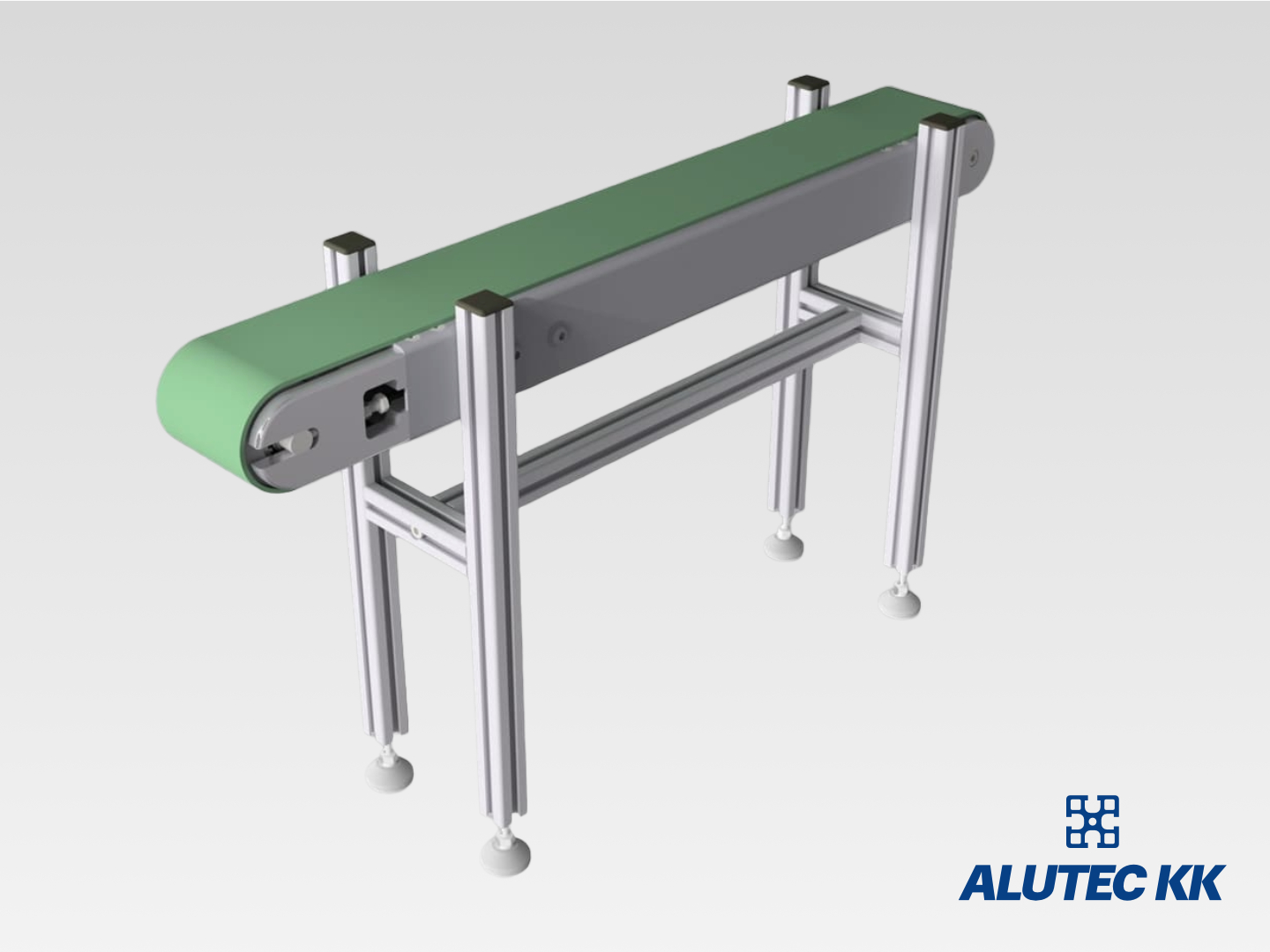

Mini conveyor
For transporting piece products over the required distance using an integrated motor and minimizing the conveyor's width.
The drive is a compact unit consisting of a 24V DC electric motor with a planetary gearbox.
The drive is completely integrated into the conveyor body and nothing except the power cables extends beyond the conveyor outline.
The diameter of the rollers is 50 mm and a belt guided by a wedge is used as standard.
The drive is not designed for continuous operation of the conveyor.
The load cycle of the drive is 50% (30 minutes of conveyor operation per hour at full load).
Basic parameters
| Minimum conveyor body width | 80 mm |
| Maximum conveyor body width | 200 mm |
| Minimum axial spacing of rollers | 500 mm |
| Maximum axial roller spacing | 2 000 mm |
| Maximum conveyor load | 5 kg |
| Transport speed - depending on conveyor load | 1-10 m/min |
| Electrical connection | 24 V DC |
* The width can be reduced to approx. 50 mm, but the motor must be positioned on the outside of the conveyor.
