Pallet transport
system MINI
Transport system for pallets between 120 x 120 mm and 240 x 240 mm, including rectangular and maximum weights of 4 kg.
Parameters of MINI series conveyors
- pallet dimensions: from 120 to 240 mm (the width of the pallet in the direction of the transport)
- maximum load of conveyor: 30 kg
- weight per pallet: up to 4 kg
- conveyor belt speed: 9 - 12 - 15 - 18 m/min
- belt width: 15 mm
- maximum indexing station load: 750 N
- Conveyor length: from 0.4 to 10 m
- rolling by 90/180 degrees (optionally version with a turntable also for 90/180 degrees)
- great positioning options, sensing, etc.

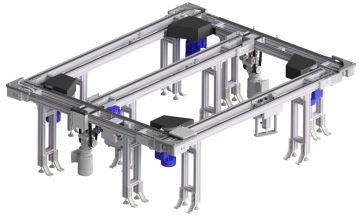

Caption of the illustrated MINI Pallet Conveyor System
Pallet conveyor system of rectangular shape (2 longitudinal conveyors, 2 cross conveyors) for transporting 120 x 120 mm palettes made of aluminium profiles of module line 30 with a 6 mm groove, rolling turn 90 degrees, ESD joints, legs with adjustable feet.
