Lifting device
Lifting unit

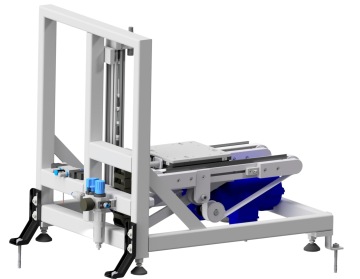

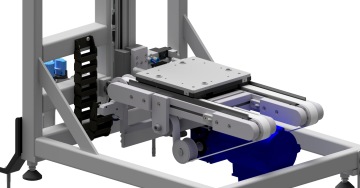

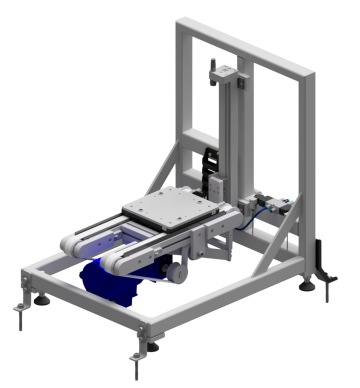

Used to move the pallet to different height levels of the PTS system. The lifting unit includes a belt conveyor that allows reversing - it takes the pallet from the PTS conveyor and can return it back to the conveyor at a different height level, or it can move the pallet to a different height level and continue in the direction of the pallet movement. The conveyor includes pallet stops with damping, pallet position sensors. The conveyor is mounted on a rodless roller with a guide that is used to lift the pallet. The cabling and pneumatic hoses are securely routed in the energy chain. Optional accessories can be added for increased enclosure safety, optical barriers, safety switches on enclosure doors. The carcass consists of a solid and rigid welded steel frame. The height adjustment can be adjusted by means of adjustable feet.
Features of lifting equipment up to 10 kg
- Supercompact design
- Max. transport weight: 10 kg
- Pallet size 200 x 200 mm - 400 x 400 mm
- Other pallet dimensions on request
- Stroke 1 to 8 500 mm
- Minimum pallet bottom position 263 mm.
- Used steel 50 × 30 × 3 mm
- Shock absorbers, self-adjusting with progressive damping
Features of lifting equipment up to 50 kg
- Compact design
- Max. transport weight: 50 kg
- Pallet size 400 × 240 mm - 640 × 640 mm
- Other pallet dimensions on request
- Stroke 1 to 8 500 mm
- Pallet stopping with DFM-25 cylinder
- Minimum pallet bottom position 300 mm.
- Used steels 50 × 50 × 3 mm
- Shock absorbers, self-adjusting with progressive damping
Features of lifting equipment up to 150 kg
- Max. weight of transported material: 150 kg
- Pallet size 400 × 400 mm - 640 × 640 mm
- Other pallet dimensions on request
- Stroke 1 to 5 000 mm
- Minimum pallet bottom position 270 mm.
- Used steel 50 × 50 × 5 mm
- Shock absorbers, self-adjusting with progressive damping
Coverage
- each lift can be clad with standard aluminium profiles and fillers
